SMD
INDUCTORS
CWIH
series |
| TO
VIEW *.PDF
FILES, CLICK
ON "Acrobat
Reader Version
4.0 "
|
 |
|
| CWIH series come in two different styles. Please consult this table for each style you need. |
|
TYPE |
A |
B |
C |
D |
E |
F |
G |
H |
FIG |
|

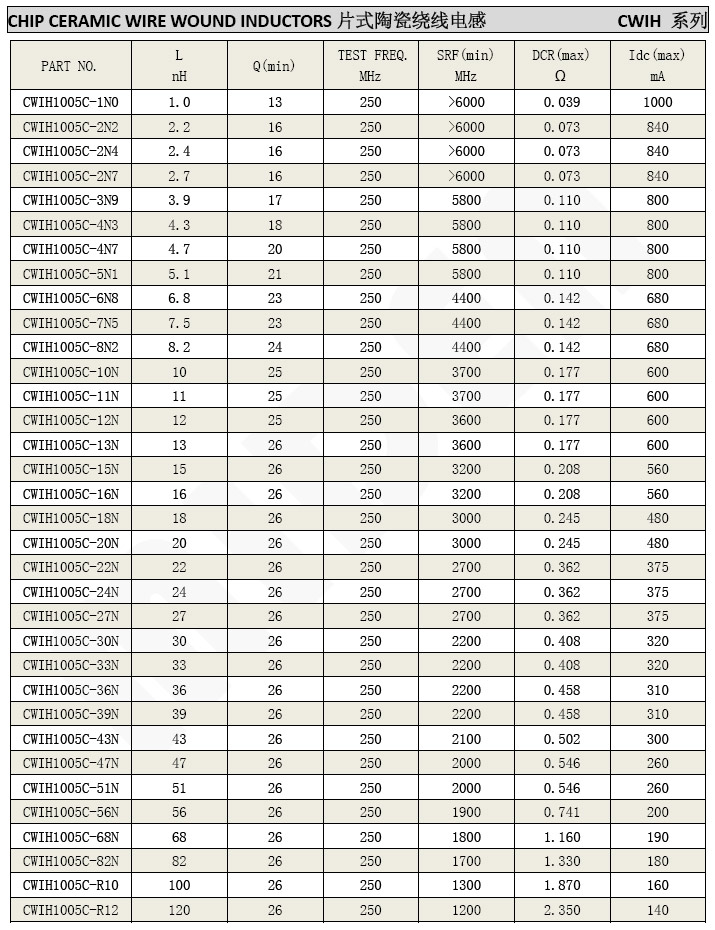

CWIH1005 |
1.00 |
0.68 |
0.55 |
0.2 |
0.55 |
0.50 |
0.35 |
0.75 |
1 |

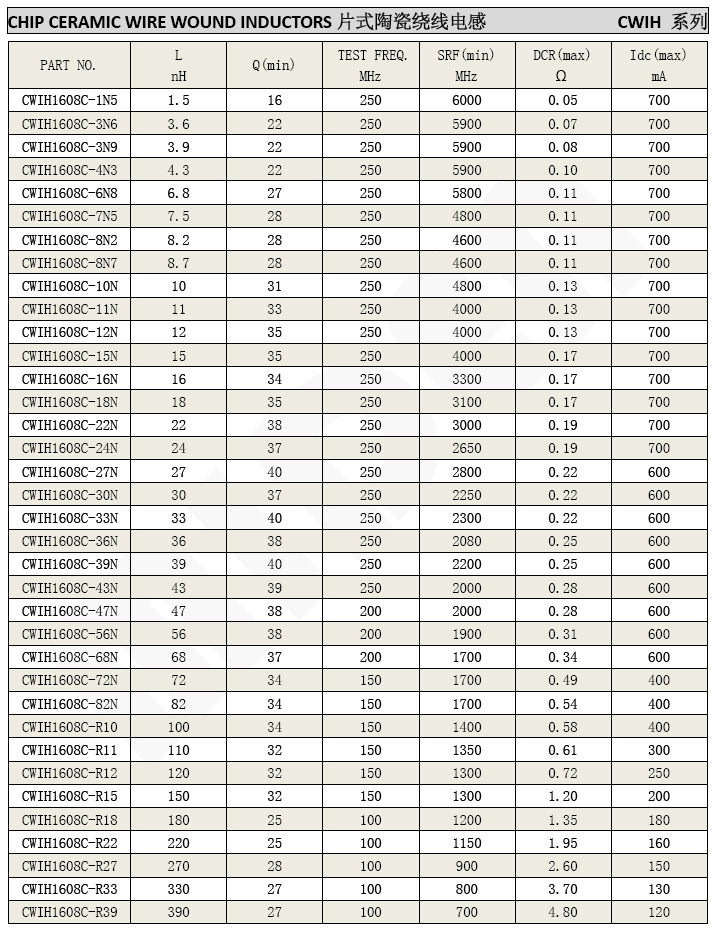

CWIH1608 |
1.52 |
0.90 |
0.82 |
0.33 |
0.76 |
0.70 |
0.55 |
0.90 |
1 |

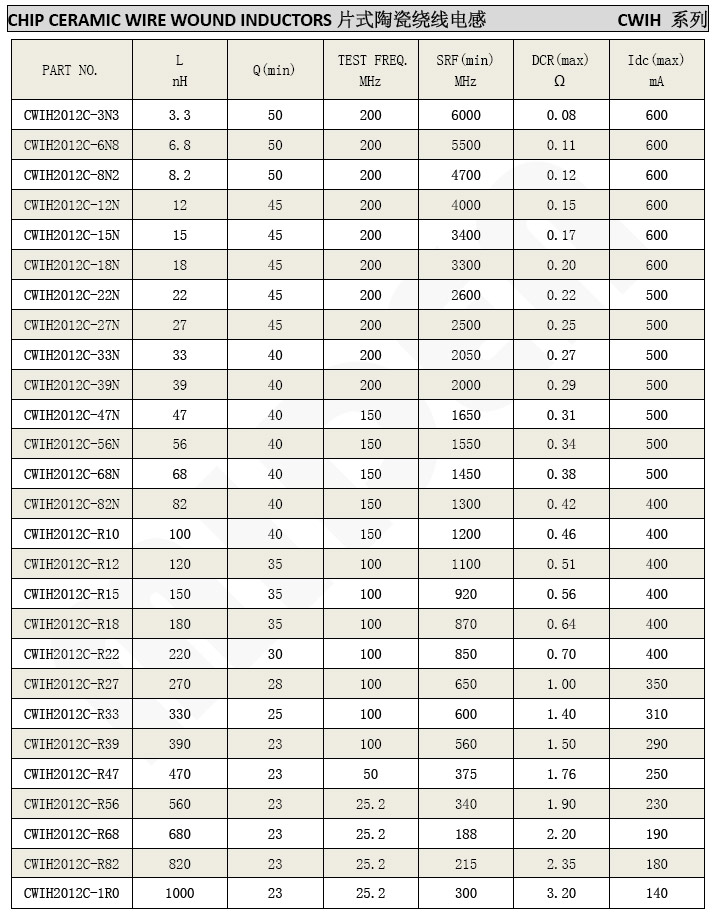

CWIH2012 |
2.30 |
1.70 |
1.60 |
0.43 |
1.17 |
1.00 |
0.65 |
1.70 |
2 |

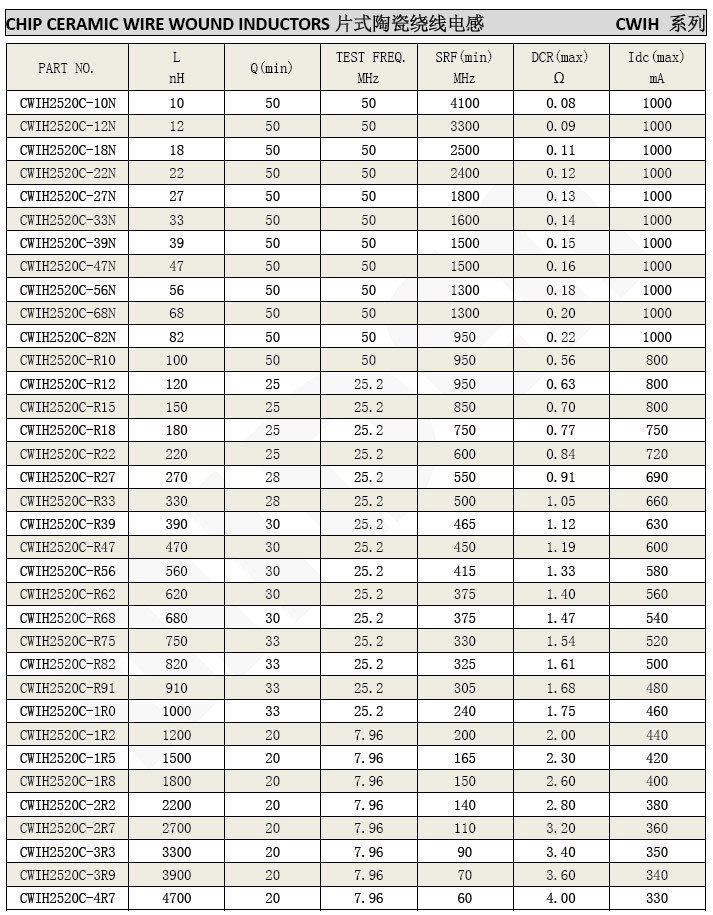

| CWIH2520 |
2.85 |
2.65 |
2.16 |
0.50 |
2.30 |
1.30 |
0.70 |
2.60 |
2 |
|
View packaging data |
|
 |
